1. The Stationary hydraulic scissor lift is the special hydraulic lift used for conveying cargos between building layers.
2. The product is mainly used for conveying cargos up and down between workshops, warehouse and various working layers: lifting auto-mobiles between layers in stereo garage and understand garage.
3. Product’ hydraulic system has anti-falling and over-loading safety productive devices, and all layers and lift working face can set operating buttons to realize multi-point control.
Model:
Single scissor lift platform ; Dual furcation lift platform; Multi-furcation lift platform;
Basic parameter:
1. Item No.: SJG1-3.6
2. Loading capacity: 1000kgs
3. Lifting height: 3600mm
4. Platform size: 1600mm x 1200mm
5. Power: 220v or 380v / 3.0kw ( as your requests )
Advantages:
1). Anti-slip insulating plastic blanket or anti-slip checkered steel plate.
2). Easy to operate.
3). Electric components are CE certified.
4). Using the high strength manganese steel structure
5). Wheels are convenient to move
6). Electrical control box is water-proof design
7). Control box only have three buttons, easily operate
8). Smooth working condition, high load capacity, safe and reliable
9). Remote control device for optional
The models we supplied for clients:
| MODEL | LOAD CAPACITY | PLATFORM SIZE | LIFT HEIGHT | PIT DEPTH | POWER |
| SJG2.5-3 | 2.5T | 5.2m x 2.6m | 3m | 750mm | 220V, 240V, 380V or 400V |
| SJG2-6.5 | 2T | 5.2m x 2.8m | 6.5m | 800mm | 220V, 240V, 380V or 400V |
| SJG2.5-3.5 | 2.5T | 5.2m x 2.6m | 3.5m | 800mm | 220V, 240V, 380V or 400V |
| SJG2.5-5 | 2.5T | 5.6m x 3m | 5m | 800mm | 220V, 240V, 380V or 400V |
| SJG3-2.5 | 3T | 5m x 2.3m | 2.5m | 750mm | 220V, 240V, 380V or 400V |
| SJG3-3 | 3T | 5.2m x 2.6m | 3m | 800mm | 220V, 240V, 380V or 400V |
| SJG3-3.5 | 3T | 5.6m x 2.7m | 3.5m | 800mm | 220V, 240V, 380V or 400V |
| SJG5-10 | 5T | 4.5m x 2.5m | 10m | 1150mm | 220V, 240V, 380V or 400V |
| SJG8-2.5 | 8T | 6.5m x 4.5m | 2.5m | 850mm | 220V, 240V, 380V or 400V |
| SJG12-3 | 12T | 5.5m x 2.8m | 3m | 950mm | 220V, 240V, 380V or 400V |
| SJG15-4.5 | 15T | 8m x 2.2m | 4.5m | 1150mm | 220V, 240V, 380V or 400V |
| SJG20-5 | 20T | 6m x 3m | 5m | 1200mm | 220V, 240V, 380V or 400V |
| The Stationary Hydraulic Scissor Lift can be customized as your detailed size. |

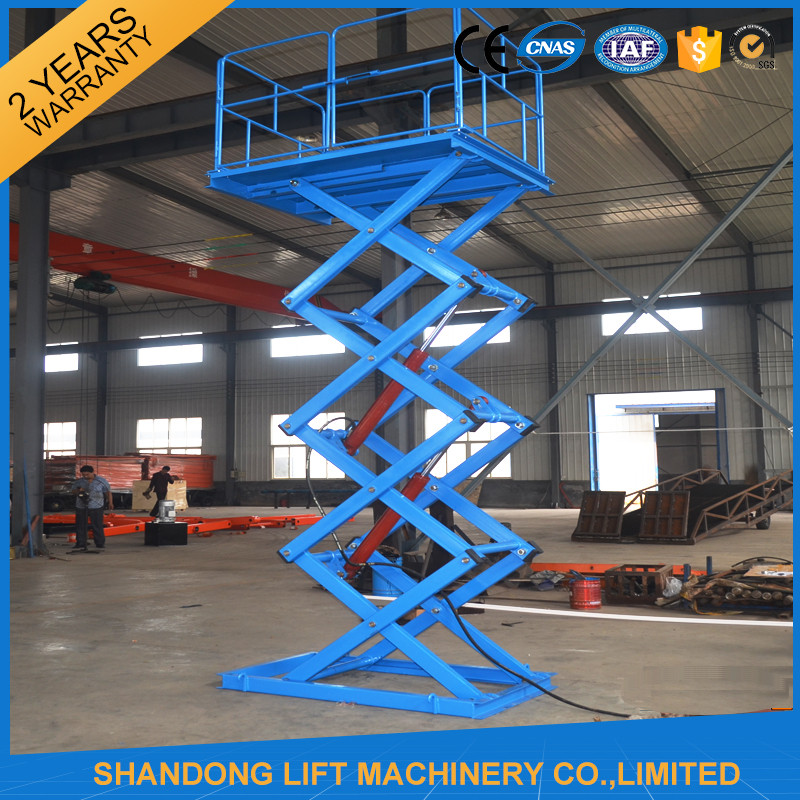

The Products showing:
Our services:
1. Installation drawing and manual will be provided after the order.
2. All products will be produced strictly according to ISO9001 quality management system.
3. Spare parts will be offered for free during the warranty period.
4. Every Stationary Hydraulic Scissor Lift must be tested by running one hour before delivery,
5. The total machine guarantee is 24 months.
